Agricultural Lighting Range

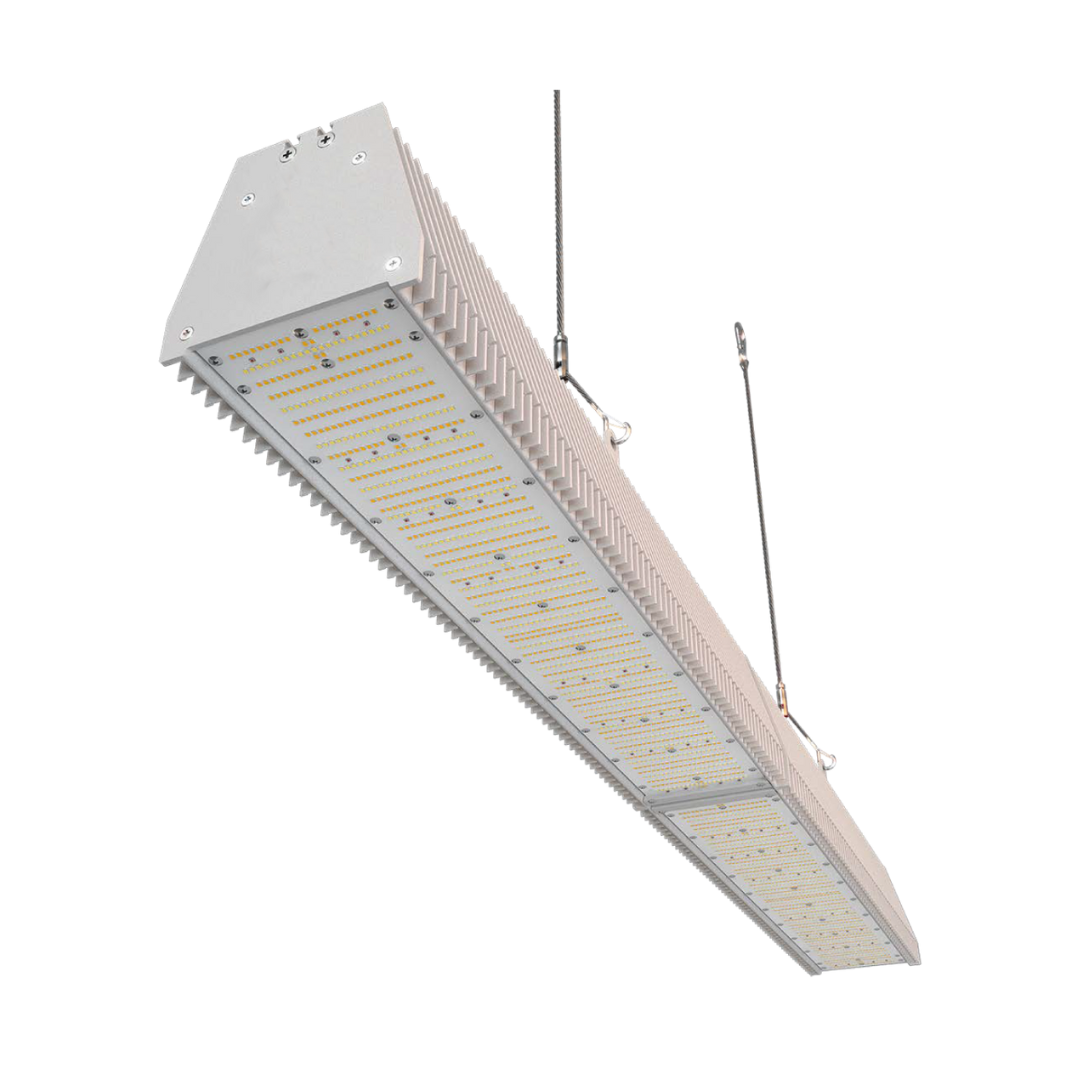

Eden
- Designed for professional cultivators, providing photobiological and engineering excellence
- Ideal for both supplemental and sole-source lighting applications, ensuring unmatched uniformity and minimal shadowing
- Features proprietary double-folded aluminum heat-sinking fins for optimal LED performance and long-lasting durability
- Operates at the lowest temperatures, extending the life of the LEDs
- Available in 300W, 600W, and 900W versions to suit different crop needs
- Tailored to deliver the precise micromole output required to boost crop yields and quality
- Proven light spectrums optimise the growth of vegetables, fruits, flowers, cannabis, and hemp
- Customisable layout solutions for various grow facilities to maximise efficiency and results
- Carbon8's Unique 5 Year Premier Care Warranty Program for the Drivers
- Carbon8's Unique 7 Year Premier Care Warranty Program for the LEDs
PPF (± 5%)
300 - 800μmol/s (PPF-A1), 780μmol/s (PPF-M1), 1230μmol/s (PPF-RB1)
600 - 1600μmol/s (PPF-A1), 1560μmol/s (PPF-M1), 2460μmol/s (PPF-RB1)
900 - 2400μmol/s (PPF-A1), 2340μmol/s (PPF-M1), 3690μmol/s (PPF-RB1)System Power (± 2%) 300 - 320W (PPF-A1), 305W (PPF-M1), 315W (PPF-RB1)
600 - 640W (PPF-A1), 610W (PPF-M1), 630W (PPF-RB1)
900 - 960W (PPF-A1), 915W (PPF-M1), 945W (PPF-RB1)Efficacy (± 5%) 2.7μmol/J (A1 Spectrum), 2.7μmol/J (A1 Spectrum),3.9μmol/J (RB1 Spectrum) Distribution 120° Spectrum A1, M1, RB1 Thermal 100% Passive Expected Life O90 50,000 hrs Maximum Ambient Temp 30°C Voltage 120-277VAC (V01), 347-480V (V04) Voltage Type AC Surge Protection 6kV (V01) l 4kV (V04) Dimming 0-10V Power Factor 0.95 Current THD 10% IP Rating IP66 LED Type Proprietary blend of Broad Spectrum
White and 660nm Red Diodes
Frame Aluminum Alloy Zipper Fin Finish Polyester Powder Coat, Antimicrobial optional Hardware Stainless Steel Driver Inventronics Fixture Dimensions 300 - 24x5.1x5.6in.
600 - 48x5.1x5.6in.900 - 72x5.1x5.6in.
Fixture Weight 300 - 9.5lb
600 - 19.0lb900 - 28.5lb
Driver Dimensions 300 - 15x2.5x5.0in.
600 - 15x2.5x5.0in.900 - 15x2.5x5.0in.
Driver Weight 300 - 7lb
600 - 7lb900 - 7lb
Typical Mounting Height ≤15 - 91cm Typical Footprint 122x122cm Misc Finish White Maximum Ambient Temperature 30°C
