Hazardous Area Lighting Product Range
BC5401 LED Light T8 (With Emergency Option)
- High efficacy LED light source replaces fluorescent light fittings.
- Suitable for interior and exterior installation.
- Suitable for operation in low and high temperature environments.
- Suitable for corrosive environments.

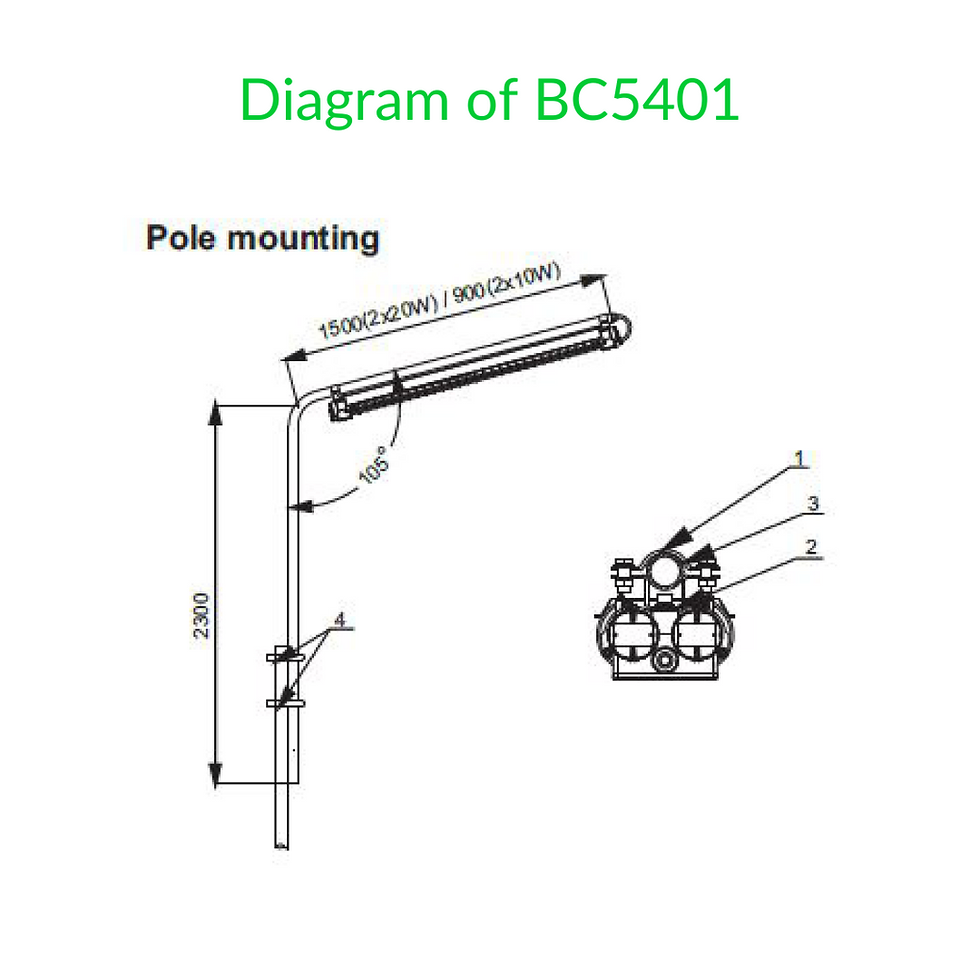

- Choice of ceiling, wall or pole fixing.
- Option of maintained emergency fitting.
- Impact and vibration resistant.
- ATEX Zones 1 and 2, 21 and 22, Certified by Eurofins product testing, Italy.
- 5 Year Premier Repair / Replace Warranty
Typical Lumens per Watt 100 CRI* >0.80 Colour Temperature* 5000K Ex mark* Ex de op is IIC T5 Gb,
Ex op is tb IIIC T95°C Db, IP66
Voltage Input 90-264V 50/60Hz Voltage Type AC Power Factor 0.95 IP Rating IP66 Ambient Operating Temp °C -40°C to +55°C Lens Material High Borosilicate glass front Cable Entry M20×1.5,M25×1.5, G3/4",NPT1/2",NPT3/4" Terminals Multi core: ≤2.5mm2
Single core: ≤4mm2
Dimension 139X180X110mm(40W)/
780X180X110mm(20W)
Net Weight 10.7kg’s (40w)/
6.6kg’s (20w)
Emergency* 20W,10W Occupancy Sensor* N/A Light Level Sensor* N/A Remote Programmable Sensor* N/A High Borosilicate glass front Fitted as standard RGB* N/A 18~43VAC/18~55VDC* N/A Fixed Bracket Mounting* Yes
